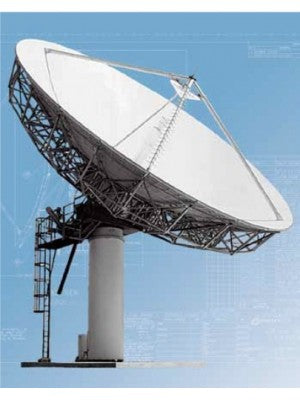

General Dynamics Vertex Model 16.4m RxTx C-Band Circular THC 4-Port Cassegrain Antenna
• C-band 4 port, CP Feed, TX/RX
• 2 TX (5.85 - 6.425 GHz)
• 2 RX (3.625 - 4.2 GHz)
• 0.5 dB Axial Ratio
• Steel Backup Structure and Turning Head -
Galvanized
• Pedestal Tube - Galvanized with ladder
and platform
• Jackscrews in Az (205°, 3 @ 85° Segments)
and El (0°-90°)
• Reflector - white diffusive painted Aluminum
panels
• Lightning arresting rods (2)
• Foundation hardware kit
• Servo Interface Kit (Az/El drive motors, limit
switches, conduit and cables for Model
7134/7200 Controllers)
• Wind Survival
125 mph any Position
