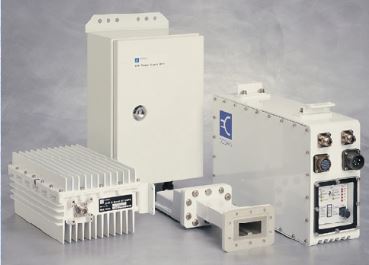

Codan C-Band, 125W, SSPA. Complete System including: 2 X 125W SSPAs, Redundancy Switch, Dummy Load, 2 X Converters and LNA

Parameter

Notes

Specification

Frequency Range

Band “D”

5.850 to 6.425 GHz

Input Frequency Range

Band “D”

950 MHz min., 1525 MHz max.

Gain, at Maximum Setting

75 dB min

Gain Adjustment Range

20 dB min

Gain Flatness

±1.0 dB over the full band, standard;

Gain Stability vs. Temperature

-40 to +50°C, standard

±1.0 dB typical, ±1.5 dB max.

Saturated Power Output

125 W

+51 dBm typ. (125 W)

Power Output at 1dB compression

125 W

+50.5 dBm min. (112 W)

Two Tone Intermodulation

-25 dBc max.,-30 dBc typical at 3 dB total backoff from 1dB compression point

Group Delay

Linear

Parabolic

Ripple

0.03 ns/MHz

0.003 ns/MHz2

1.0 ns peak to peak

AM/PM Conversion

2.5°/dB typical, 3.5°/dB max. at (P1 dB)

Noise Figure

8 dB typical at maximum gain, standard

VSWR

Input

Output

1.20:1 typical, 1.30:1 max

1.20:1 typical, 1.30:1 max

Output Sample Port

-40 dBc typical

Connectors

Input

Output

Sample

Port

I/O

Power

Type N

Female

CPR137G

Waveguide

Type N

Female

10-pin MS, mate supplied

3-pin MS, mate supplied

Power Requirements

Voltage, 50/100/125 W

Voltage, 200/250 W

Frequency

Power, 125 W Power 200 W Power 250 W Power factor corrected

100 to 242 VAC

180 to 242 VAC

63 Hz max., 47 Hz min.

650 W typical, 900 W max.

0.97 typical

Cooling System

Forced Air

Operating Temperature Range

Ambient air temperature

-40°C to +50°C

Dimensions

See outline drawing

8.25” H x 23.48” W x 10.36” D; 210 mm H x 596 mm W x 263 mm D

Weight

36 lb, 16 kg
