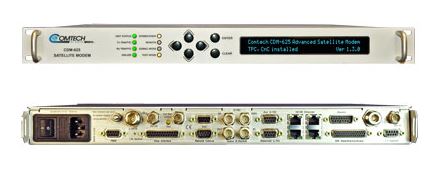

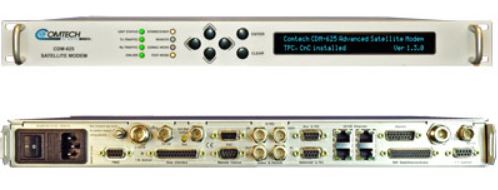

Comtech CDM625 828

Download Technical Specification Sheet

Comtech CDM625 828

Download Technical Specifications

CDM-625 BASE UNIT LPN:

CDM6250.000110000010103XX.0010000000S00

CDM-625 Base Unit:

• Standard CEFD Front Panel (Standard Firmware),

• 100 - 240 VAC Primary Input Power (65 Watt Power Supply), No BUC Power Supply, TPC / LDPC Board,

• Carrier-in-Carrier Board (Slot 2),

• 70/140 MHz IF and L-Band IF,

• 18 kbps - 10 Mbps Modem Data Rate,

• BPSK - QPSK - OQPSK and 8-PSK + 8-QAM Modulation Type,

• 18 kbps - 5 Mbps TPC / LDPC Data

• Full Carrier-in-Carrier: 18 kbps - 2.5 Mbps,

• EDMAC / EDMAC2 (Standard), Drop and Insert (and D and I++) for                                 Single Port E1 / T1,

• Standard Software, CDM625, FAST Option for D+I/D+I++ for Single E1/T1 and                                 Quad E1 D+I Port 2, 3, 4

• CDM625, FAST Option for TPC/LDPC

• Data Rate 18 kbps to 10 Mbps
