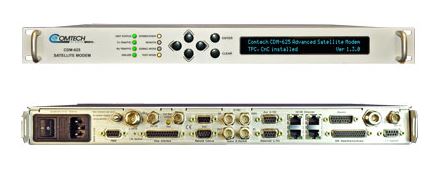

Comtech CDM625 921

Download Technical Specifications

Comtech CDM625 921

CDM-625 BASE UNIT LPN:

CDM6250.001110000011100XX.0000000000S00

CDM-625 Base Unit:

• Standard CEFD Front Panel (Standard Firmware),

• 100 - 240 VAC Primary Input Power (65 Watt Power Supply), 24 VDC 90 Watt BUC Power Supply (for Modem with AC Primary Power),

• TPC / LDPC Board,

• Carrier-in-Carrier Board (Slot 2),

• 70/140 MHz IF and L-Band IF,

• 18 kbps - 20 Mbps Modem Data Rate,

• BPSK - QPSK - OQPSK and 8-PSK + 8-QAM Modulation Type,

• 18kbps - 5 Mbps TPC / LDPC Data Rate,

• EDMAC / EDMAC 2 (Standard),

• Standard Software.
