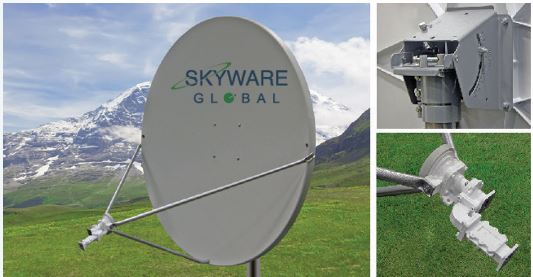

Skyware Global Type 122, 1.2m, Antenna.

Download PDF

Skyware Global Type 122/

The 1.2M Ku-Band Tx/Rx Class I Antenna System is a rugged commercial-grade product suitable for the most demanding applications. The reflector is thermoset-moulded for strength and surface accuracy.

Effective Aperture: 1.2M (48 in)

Gain (±.3 dBi)Transmit / Receive: 43.3 dBi @ 14.3 GHz41.8 dBi @ 12.0 GHz

Operating Frequency Transmit / Receive: 13.75-14.50 GHz, 10.70-12.75 GHz

Polarization: Linear, Orthogonal(co-pol optional)
