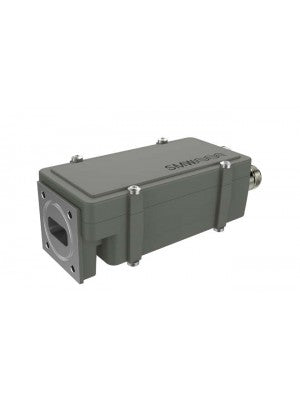

WDL-PLL ULP type B N ext. 10 MHz ref. Ultra Low Phase Noise Freq. 10.95-11.70 & 11.70-12.75 GHz IF: 950-1700 MHz & 950-2000 MHz LO 10.00 & 10.75 GHz, Ext. 10 MHz ref. Output: N-connectors DC input: +15 to +26 V & Ext 10 MHz on High Band output connector
The Ultra Low Phase Noise "ULP" option is recommended* for: DVB-S2 Narrowband 8PSK 8/9 and 9/10 FEC, and (cont.) 16 APSK or higher modulation type (any bandwidth) (cont.) All applications with "Pilot Off" DVB-S2X All "MODCODS" and symbol rates NS3/NS4 All "MODCODS" and symbol rates
