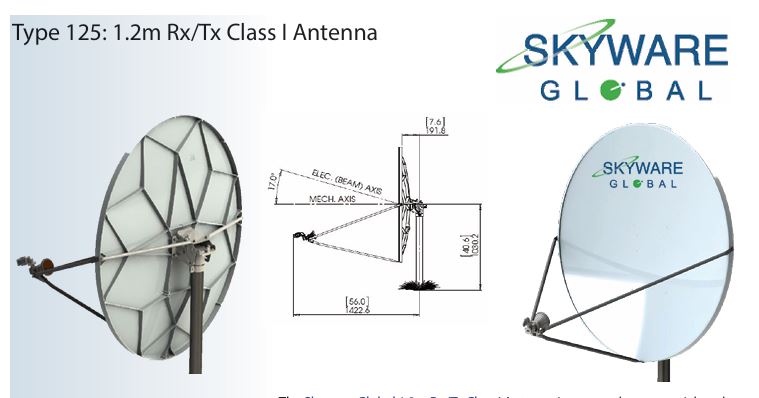

Skyware Global Type 125 1.2m Antenna

Download PDF

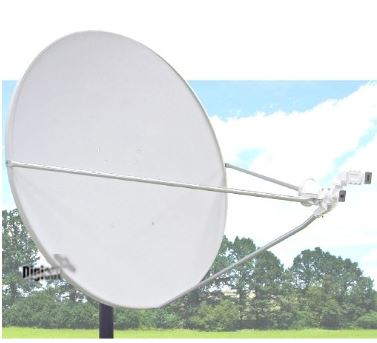

 The Skyware Global 1.2m Rx/Tx Class I Antenna is a rugged, commercial-quality product suitable for the most demanding applications.
 •  One-piece precision SMC
    Reflector
 •  Precision Az/EI Mount
 •  Fine Azimuth and Elevation
    Adjustment Features
 •  All Materials Comply with EU
 Directive No.
    2002/95/EC (RoHS]
 • 720-Hour Salt Spray
    Hardware
 •  Standard Waveguide Flange
• The reflector is constructed from glass fiber reinforced polyester [SMC] for
strength and accuracy. A proprietary process developed by Skyware Global
ensures high RF reflectivity as needed for Ku-Band operation.
 • The precision Az/EI mount is made of galvanized steel for excellent cor
rosion resistance. This mount includes special features to increase pointing
accuracy with low backlash and lockdown error.
 • This Az/EI allows the antenna to be installed on standard 73-76mm [27/8”- 3”]
OD installation mounts.
 • All hardware is plated to 720 hour salt spray standards under ASTM B-117.
 • Cross-Polarization Isolation of 30dB on axis.
 • Excellent Tx Port-to-Port Isolation of 90dB or better.
 • Meets or exceeds regulator agency requirements.
• Class I system designed for typical lightweight Ku-band RF Electronics.*
 * 2.0 kg or 4.5 lb max. weight (For BUC and LNB) 2.2 kg or 4.8 lb max. weight (For Transceiver)
