Vertex/RSI, 4.8m, C-Band Antenna

Download PDF

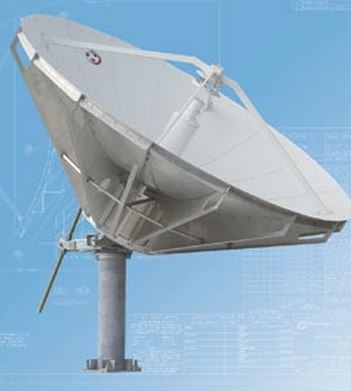

Pre-Used  Vertex/RSI 4.8m Satellite Antenna, C-band with non-motorized Pedestal Mount

The VertexRSI (GDSatcom/CPI) 4.8m antenna delivers exceptional performance for Rx/Tx and Rx-only applications for C-band frequencies (5,850- 6,425GHz). This antenna offers a deep-dish reflector that incorporates precision- formed panels, contoured radials, and a machined hub assembly. It features an innovative feed and sub-reflector design, which results in high gain, low noise temperature, high antenna efficiency, and excellent rejection of noise and microwave interference.

The VertexRSI 4.8m C-Band antenna delivers exceptional performance for Rx-only and for Rx/Tx applications worldwide. Model KPC Compact Cassegrain antennas feature all metal reflectors which incorporate doubly-contoured, formed panels with matched radials and hub assemblies for easy bolt-together installation with no field alignment required.

The extra-large center Hub (Antenna Hub or Drum) provides spacious accommodation for equipment mounting like LNA- and HPA-systems. The reflectors, coupled with Elevation/Azimuth Kingpost Pedestals, provide the stiffness and pointing accuracy required for X-band and Ku-band operation.
The antennas are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations. This antenna system is INTELSAT, AsiaSsat, Hispasat, EuropeStar and Singapore Telecom type-approved.

Key Features

• ‘Bolt-Together’ configuration
• Meets FCC Regulation 25.209
• INTELSAT, AsiaSat and SingTel Type Approved
• De-icing options available

Antenna is cleaned (pressure washed) and hardware kits are checked out and are properly packed for transportation.
